Vintage Cafe EBike

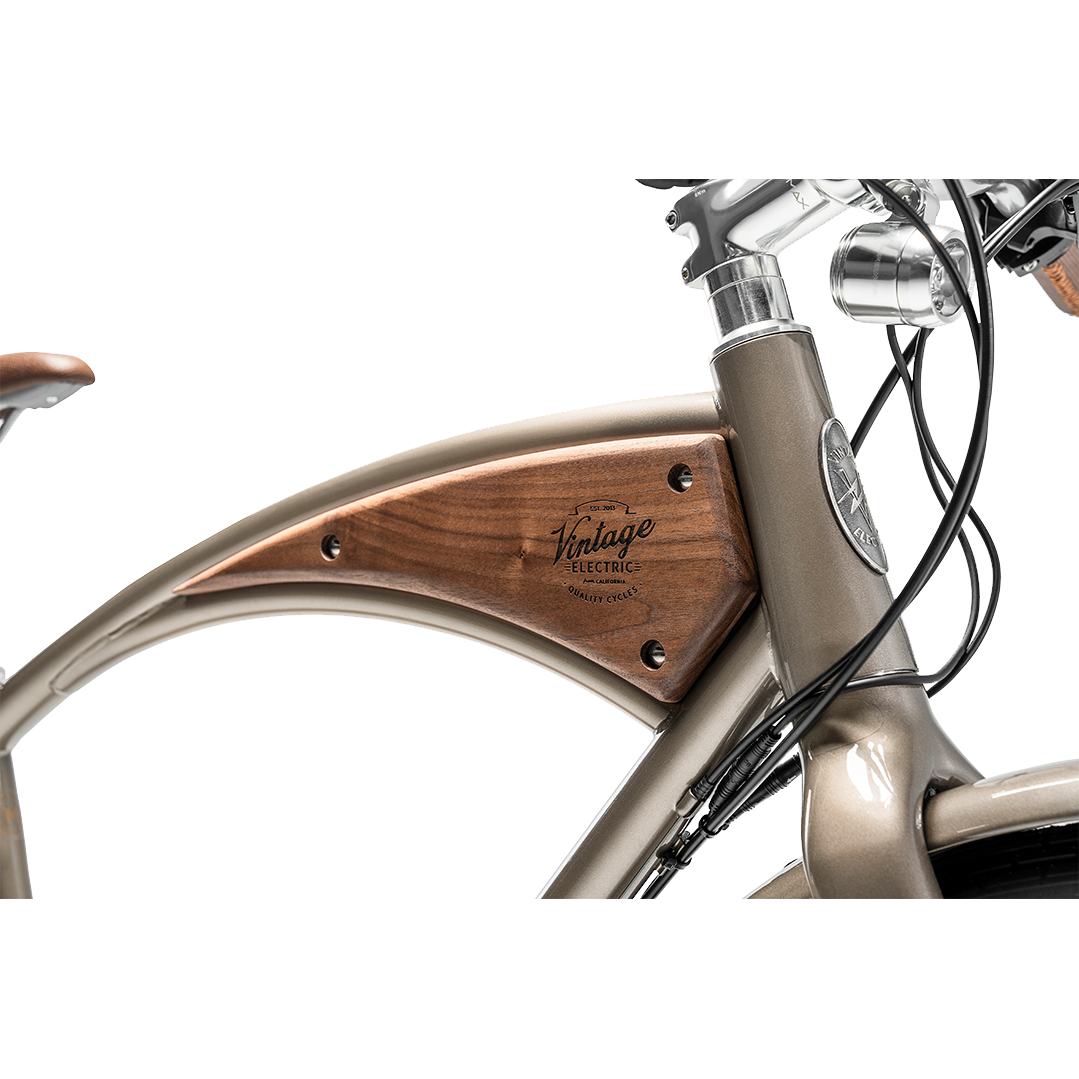

The all new Vintage Cafe has been amplified. Outfitted with beautiful laser etched wood inlays, our Cafe now features our latest and all new Vintorque™ technology.

Our all new 2020 VintorqueTM Drivetrain Technology, remarkably, melds you with machine—and this ain’t science fiction. Thanks to its pedal assist input—which includes our most finely attuned torque sensor ever—the powerful drivetrain reacts instantly and seamlessly to the motion of your feet. The instant you need power, you’ve got it, resulting in a super-smooth ride, be it uphill or a long straightaway. Its bluetooth-enabled controller guarantees frictionless integration between all components, pumping up performance and power for our top-of-the-line 750-watt rear-hub motor.

This wolf in sheep’s clothing is our equivalent of a 500HP V8…hidden under the hood of the family sedan. With 3X the power of its competitors the Cafe walks quietly, but carries a big stick. Wedged within the mild-mannered-styling of the pedal assist commuter, is a ferocious power plant, producing a surreal level of speed and acceleration. All the benefits of bicycle commuting have been amplified by the electric drive train and vintage-inspired aesthetics, putting the Cafe electric bike in a lane of its own.

Specifications

Vintage Electric
MODEL:
Cafe
BODY POSITION:
Forward
SUGGESTED USE:
Urban, Cruising
ELECTRIC BIKE CLASS:
Speed Pedelec (Class 3)
Learn more about Ebike classes
WARRANTY:
2 Year Comprehensive
MODEL YEAR:
2017
Bicycle Details
TOTAL WEIGHT:
56.2 lbs (25.49 kg)
BATTERY WEIGHT:
9.4 lbs (4.26 kg)
MOTOR WEIGHT:
7.5 lbs (3.4 kg)
FRAME MATERIAL:
Chromoly Steel
FRAME SIZES:
17.5 in (44.45 cm)18.5 in (46.99 cm)19.5 in (49.53 cm)
GEOMETRY MEASUREMENTS:
Medium 18.5 Measurements: 18.75″ Seat Tube, 22.5″ Reach, 31.5″ Stand Over Height, 28″ Width, 72″ Length, Small 17.5 Measurements: 17.75″ Seat Tube, 31″ Stand Over Height
FRAME TYPES:
High-Step
FRAME COLORS:

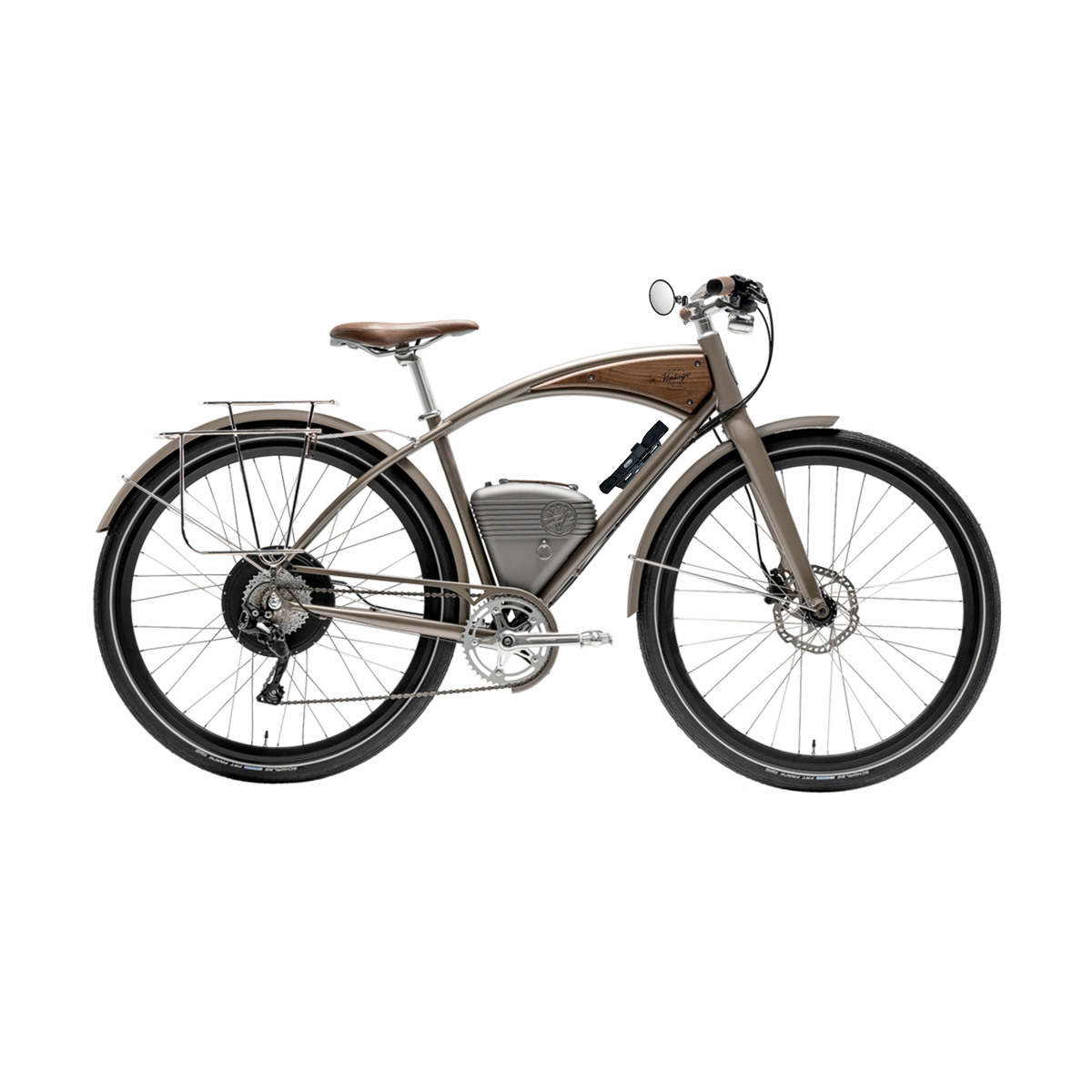

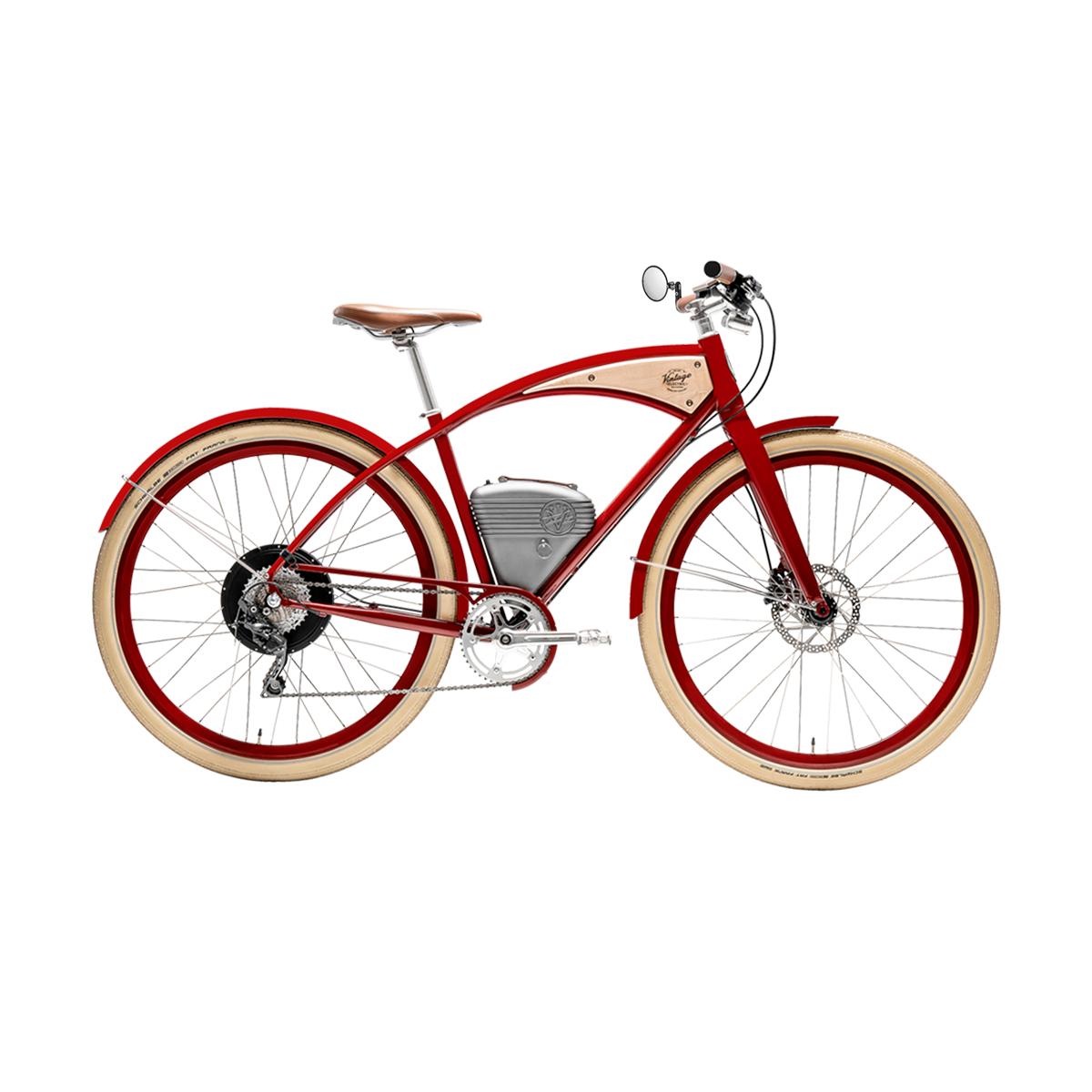

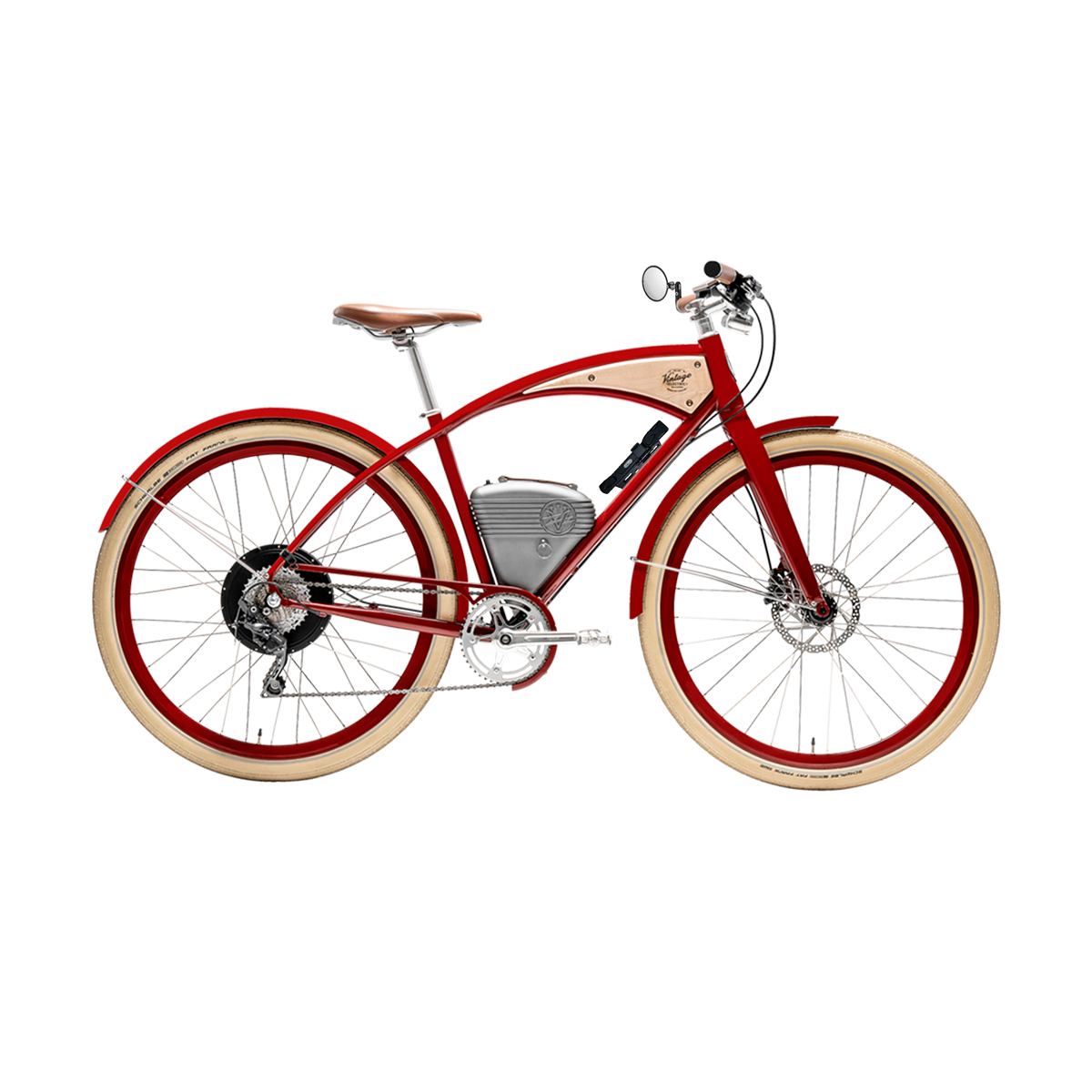

Skyline Bronze, Golden Gate Red
FRAME FORK DETAILS:
Rigid Aluminum Alloy, 100 mm Hub Length, 15 mm Maxle with Quick Release
FRAME REAR DETAILS:
135 mm Hub, 12 mm Axle with Nuts
ATTACHMENT POINTS:
Rear Rack Bosses, Fender Bosses
GEARING DETAILS:
10 Speed 1×10 Shimano Deore XT Derailleur with Shadow Plus Clutch, 11-34T Cassette
SHIFTER DETAILS:
Shimano SLX Two-Way Triggers on Right
CRANKS:
FSA CK-633 F. Gimondi, Aluminum Alloy, 170 mm Length, F. Gimondi 44 Tooth Chainring
PEDALS:
MKS, Aluminum Alloy Platform, Silver
HEADSET:
Tapered 1-1/8″ to 1-1/2″ Sealed Cartridge
STEM:
Promax, Aluminum Alloy, 70 mm Length, 7° Angle, 31.8″ Clamp Diameter

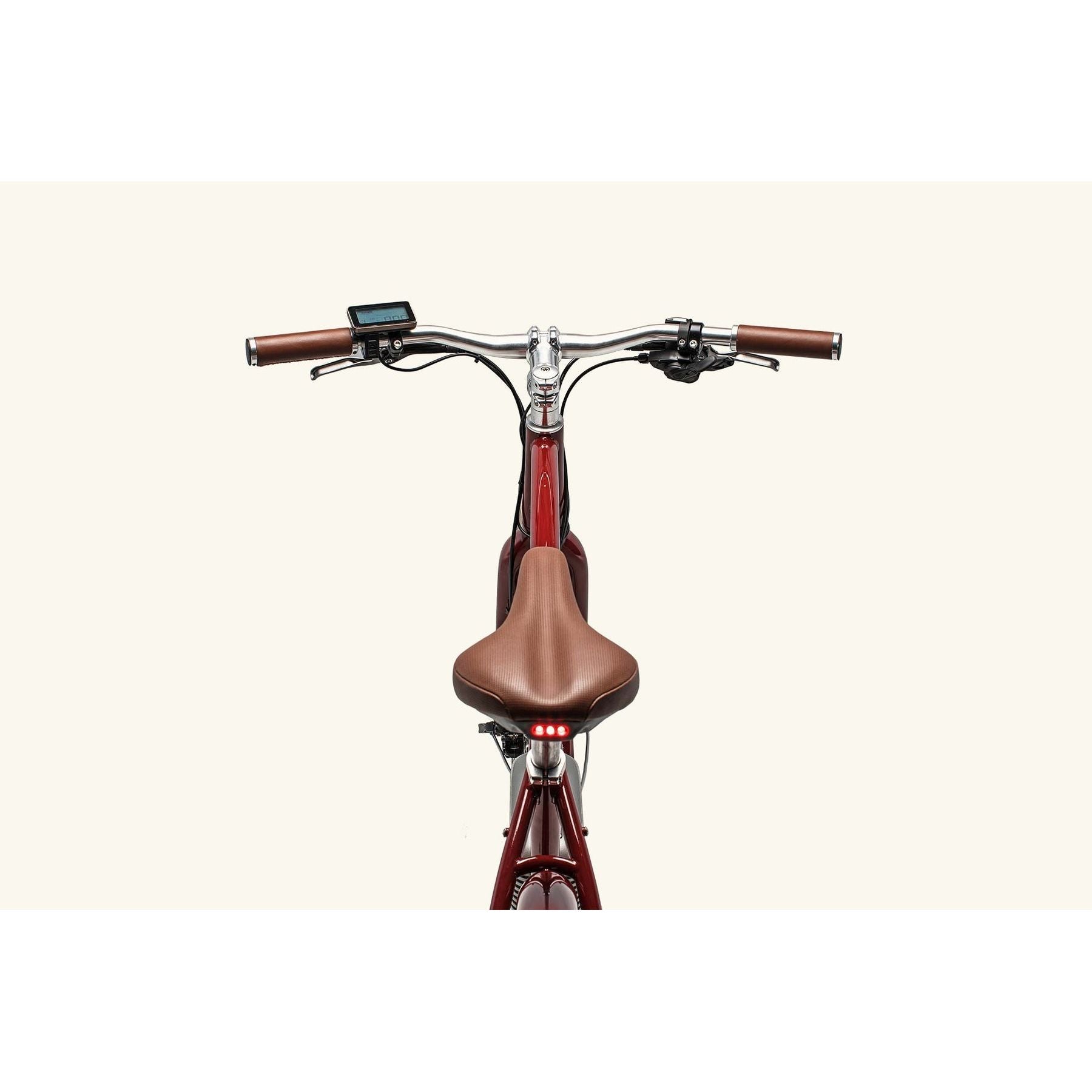

HANDLEBAR:
Low-Rise, Aluminum Alloy, 700 mm Length
BRAKE DETAILS:
Shimano Hydraulic Disc with 180 mm Front Rotor, 160 mm Rear Rotor, Three-Finger Shimano Levers with Adjustable Reach
GRIPS:
Velo, Stitched Leather with Lockers

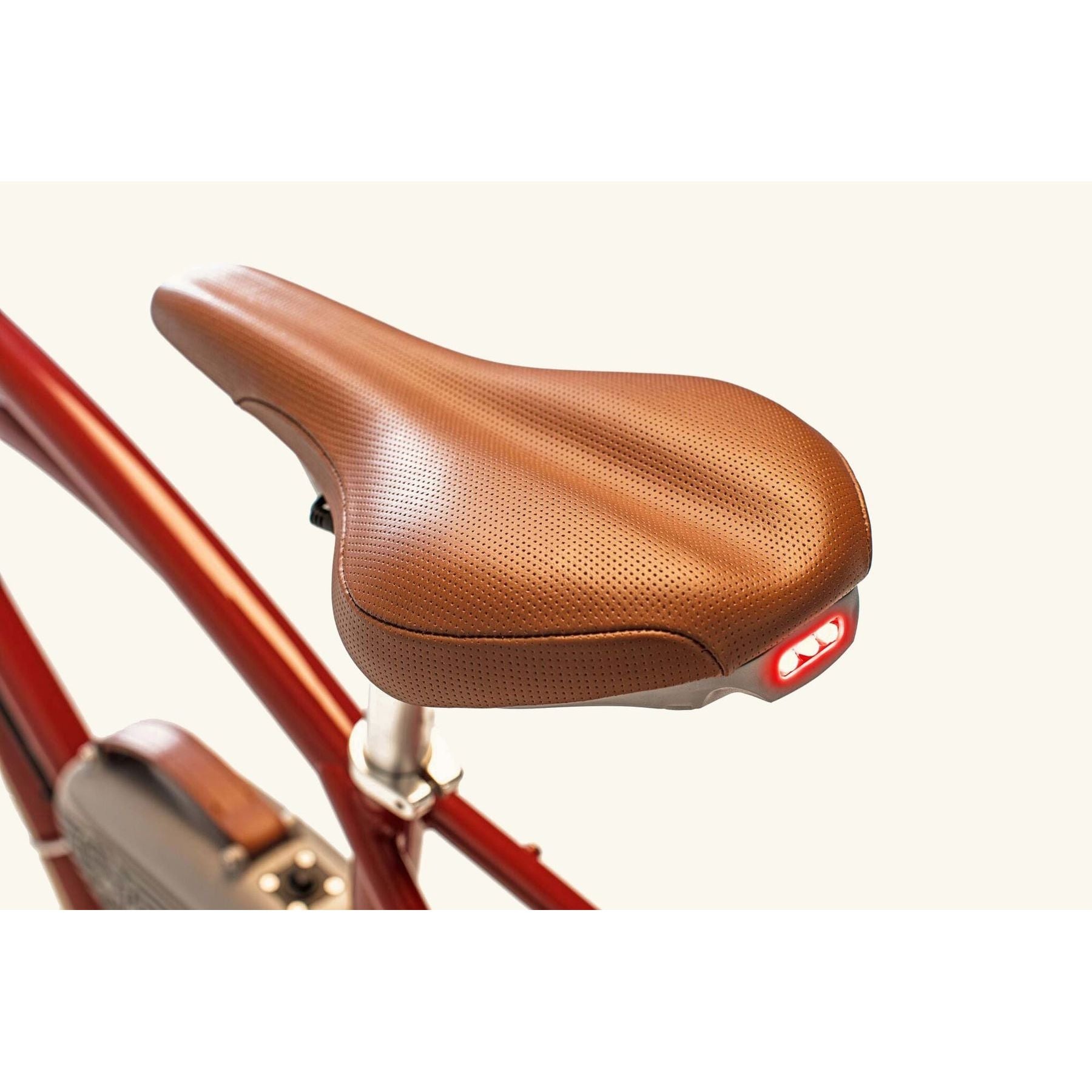

SADDLE:
Velo, Leather, Perforated Dual Density with Integrated Supernova LED Light
SEAT POST:
Aluminum Alloy
SEAT POST LENGTH:
350 mm
SEAT POST DIAMETER:
27.2 mm
RIMS:
Aluminum Alloy, Double Wall, Color Matched, 36 Hole
SPOKES:
Stainless Steel, Hand Laced and Tensioned, 14 Gauge Front, 13 Gauge Rear, Adjustable Nipples, Silver
TIRE BRAND:
Schwalbe Fat Frank, 28″ x 2.0″
WHEEL SIZES:
28 in (71.12cm)
TIRE DETAILS:
30 to 65 PSI, Reflective Sidewall Stripe, Available in Black or Creme Colors, Active Line K-Guard Puncture Protection
TUBE DETAILS:
Presta Valve
ACCESSORIES:

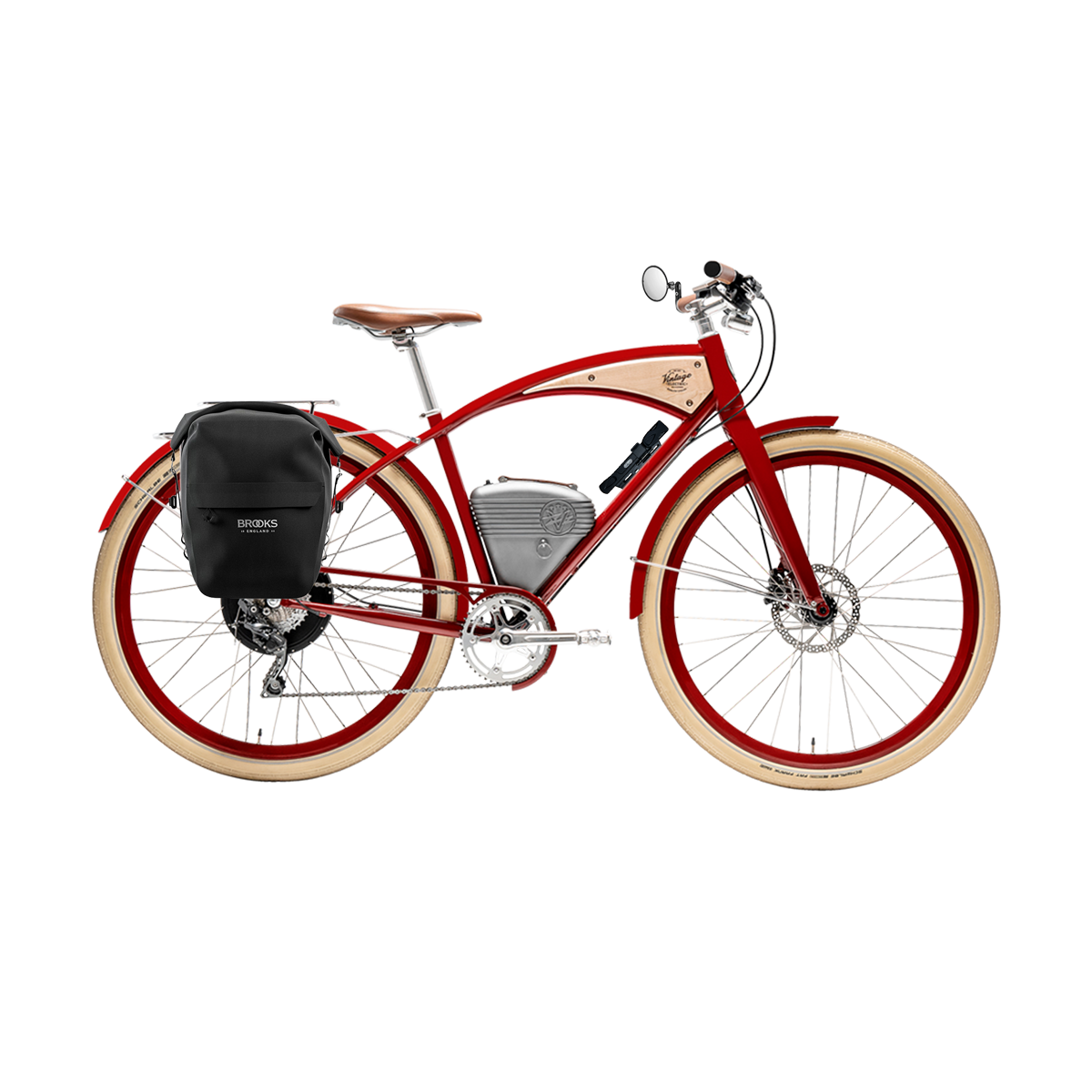

Premium Flick Bell, Greenfield Center Mount Kickstand, Aluminum Alloy Paint-Matched Fenders, Aluminum Alloy Paint-Matched Chain Cover, Integrated Supernova E3 E-Bike V6S Headlight (165 Lumens), Integrated Supernova E3 Rear Light, Optional Custom Aluminum Alloy Rear Rack ($165), Optional Brooks Panniers
OTHER:

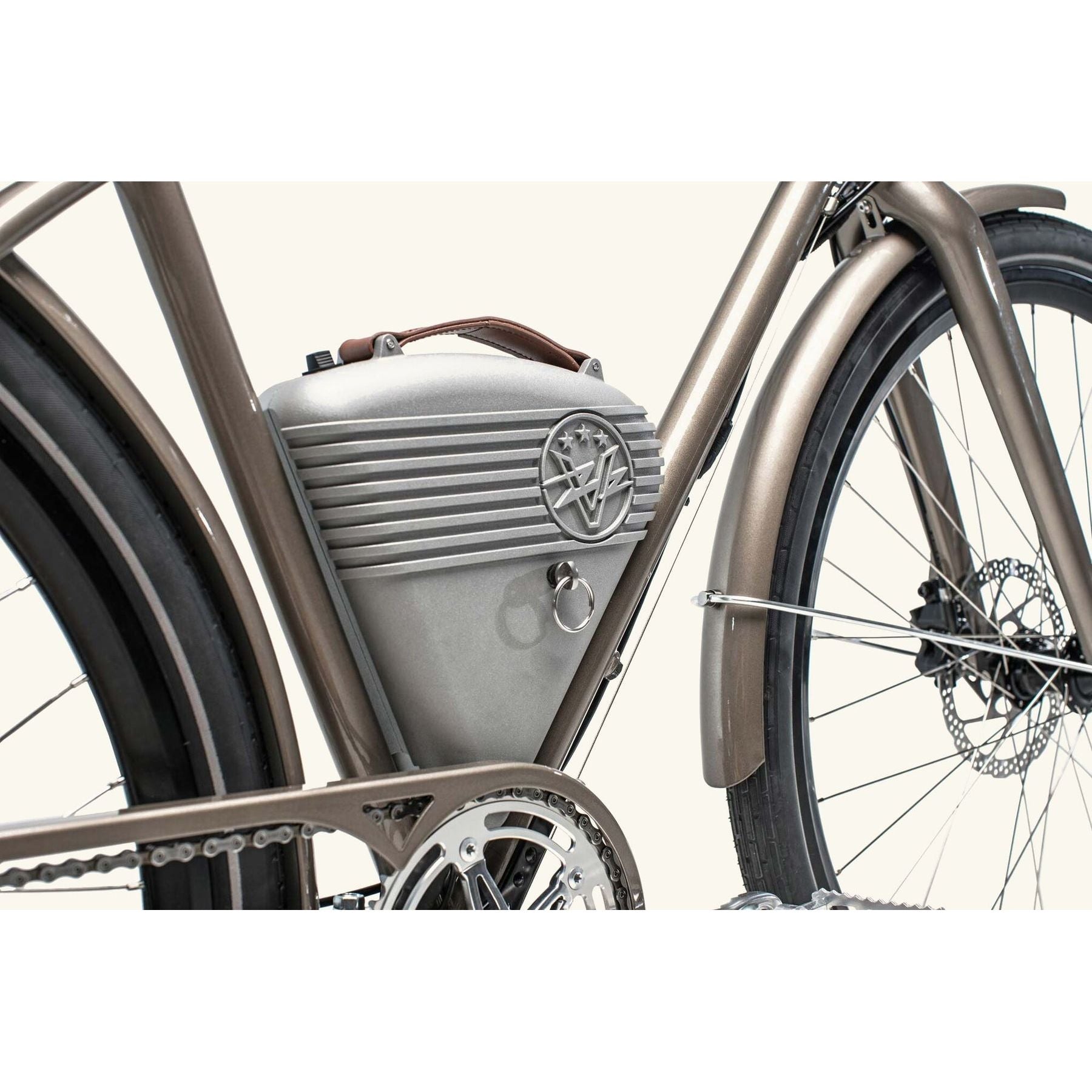

Removable Pin-Locking Downtube Mounted Battery Pack, 3 lb High Speed 6 Amp Charger with Rubber Cap, Maximum Weight 300 lbs
